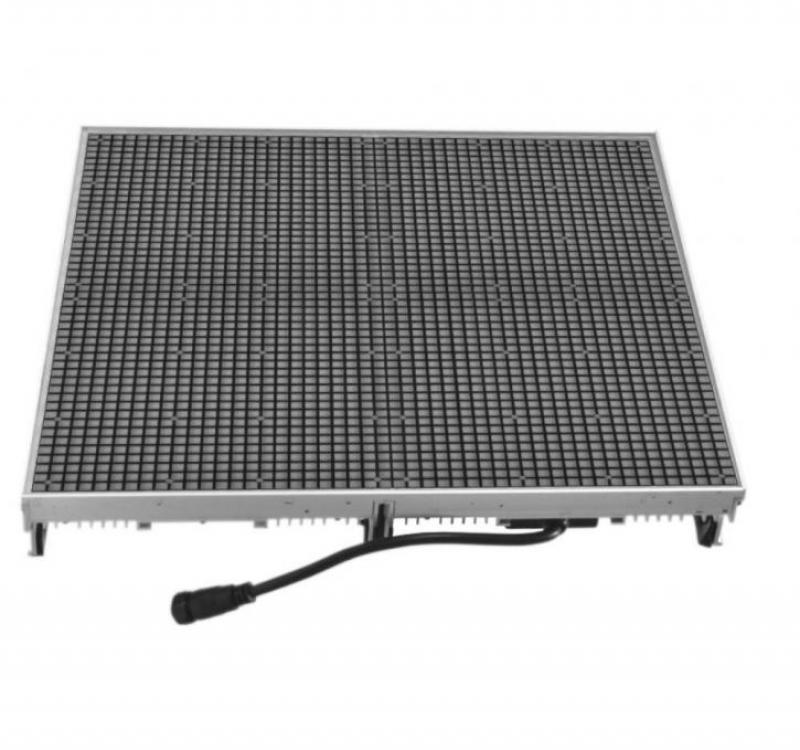

Name : Magic cube 10
Model : SBC-M-C-P10
Mark : SBC
Origin : Shenzhen
Lead Time : 25days
Warranty : One Year
Certificates : CE,RoHS,Fcc
Browse :

Magic cube 10 is a LED display for indoor and outdoor stage set decoration and R & D .Synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images. In real-time, synchronous, clear information dissemination player kinds of information, and can display 2D and 3D animation, video, TV, VCD programs and live.

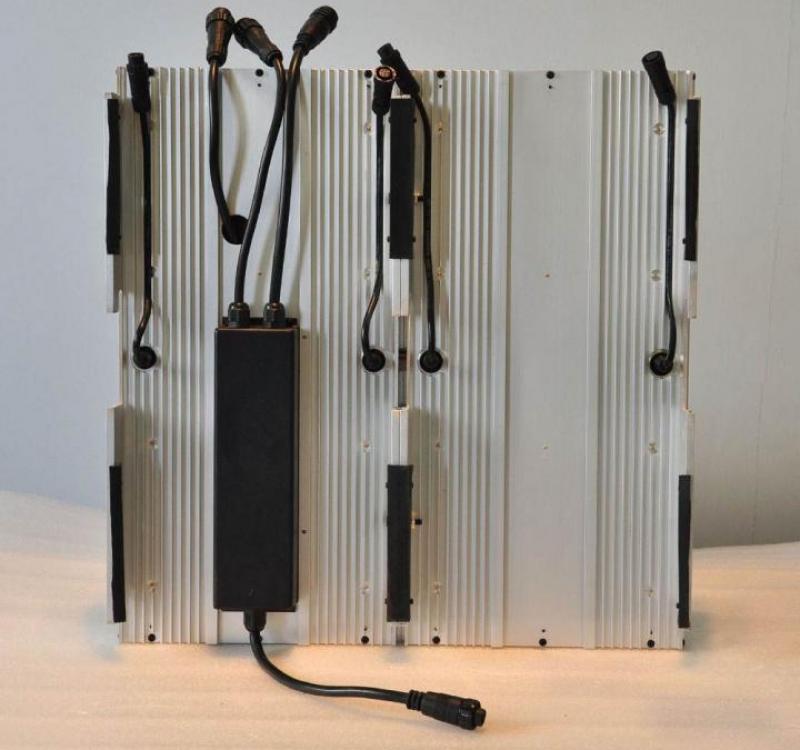

Light bar structure design greatly reduces air resistance, simple structure, ultra-light, ultra-thin, easy to install, free to split the assembled screen the size of random combinations, refined structure, the box on both sides of the handle design, easier screen body assembly using quick lock design, the box is not only lightweight and high flexibility. Applied to a large area of indoor and outdoor stage set and decorative.


Magic cube 10 series cabinet main features are as follows:
1.SMD 3 in 1 technology, so that in use, LED display with ultra-wide viewing angle and better surface flatness;
2.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance;
3.High contrast, high refresh rate, making the led display render the image without any delay, smear phenomenon;
4.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.;
5.Air box, professional packaging protection, of the screen body control equipment has played a good protection;
6.Easy Install screen body specifications designed the cabinet total weight of 11kg;

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

30m

Pixel pitch (m)

10mm

Pixel resolution(Dots/㎡)

10000Dots/㎡

Pixel color composition

SMD3535 3-in-1

Cabinet size

500*500*73mm

Cabinet weight

11KG

Scan method(S)

1/4S

Brightness(cd/㎡)

3500cd/ adjustable by software

Refresh frequency (Hz)

800Hz adjustable by software

MTBF(H)

>10000H

Max. power consumption(W/㎡)

550W/

Ave. Power consumption(W/㎡)

220W/

View angle

120 °horizontally, 120°vertically,

Grey level/Color

16.7M colors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IP level

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10~+50

Operating humidity

10%RH~90%RH

Storage temperature

-20~+70

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF/S-Video/RGB/RGBHV/YUV/YC/etc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
