  • Product Name: Kingkong 20
  • Product No.: Kingkong series P20MM

King Kong20 is designed for applications such as large area inside and outside spaces application developed. Adopt synchronization control system processing, acceptable DVI, VGA, HDMI, S-video, composite, YUV input signal, free to play video, graphics, images, programs and Mao, in real-time, synchronous, clear information dissemination player kinds of information, and can display two-dimensional, two-dimensional animation, video, TV, VCD programs and live.

    As a new advertising display, designed to make stable, durable, easy to use, suitable for indoor and outdoor large-area advertising application spaces.

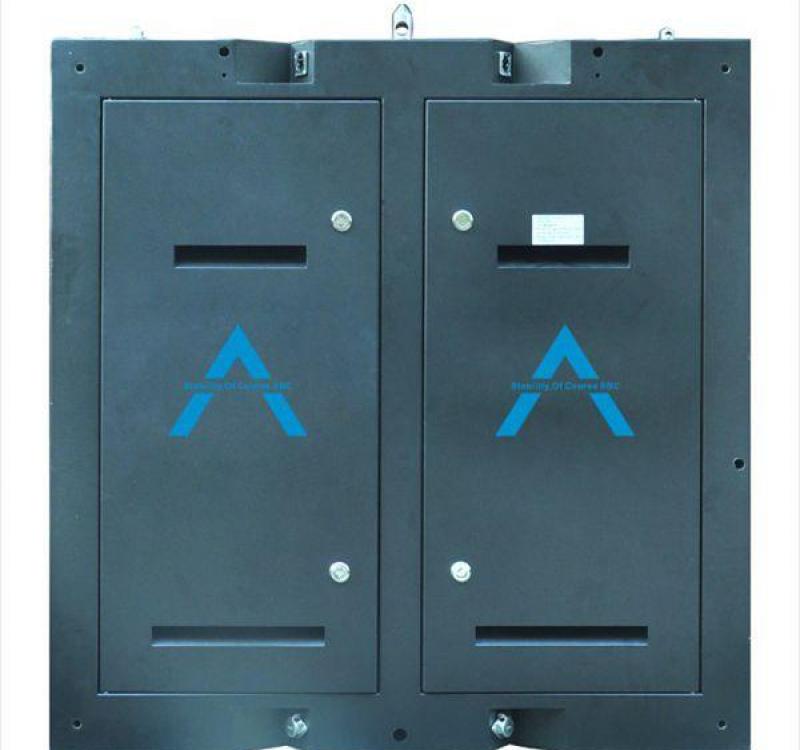

King Kong 20 cabinet main features:

1.Using DIP technology make the screen have a excellent effect when it plays.

2.The cabinet become more firmed , and corrosion-resistant.

3.Synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance.

4.High contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon.

5.Compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc..

6.Flight case professional packaging protection, of the screen body control equipment has played a good protection.

7.Unique waterproof case designed to meet the IP65 protection standard, and can be directly installed in outdoor use.

8.Superior components, reduce heat to extend the use of screen body time to improve the life cycle of the screen body.

Technical Specification Requirements

Type

Technical requirements

Best view distance(m)

≥69M

Pixel pitch(m)

20

Pixel resolution(Dots/㎡)

2500Dots/㎡

Pixel color composition

1R1G1B

Cabinet size

1280*960

Cabinet weight

60KG

Scan method(S)

Static scan

Brightness(cd/㎡)

≥8000cd/m2adjustable by software

Refresh frequency(Hz)

≥1000Hz

MTBF(H)

>100000H

Max. power consumption(W/㎡)

550W/ m2

Ave. Power consumption(W/㎡)

300W/ m2

View angle

140°horizontally, 140°vertically

Grey level/Color

16.7Mcolors(Synchronized)

Color temperature

R.G.B brightness 256 level adjustable, Color temperature is adjustable according to your requirement.

IPlevel

IP65

Defects rate

<1/10000Dots

Life span(H)

>100000H

Operation voltage

AC220V±10%/AC110V±10%(Power can’t be converted directly)

Operating temperature

-10℃~+50℃

Operating humidity

10%RH~90%RH

Storage temperature

-20℃~+70℃

System Operating Platform

WIN 98/ 2000/ XP

PC display mode

1280*1024

Control PC

With DVI Graphic card ( brand PC recommended)

Video signal

RF、S-Video、RGB、RGBHV、YUV、YCetc

Effective control distance without repeater

Unshielded Twisted-pair LAN cable transmission within 100m

Multi-mode optical fiber≦500m,mono-mode optical fiber≦20km.
